Product Parameters:

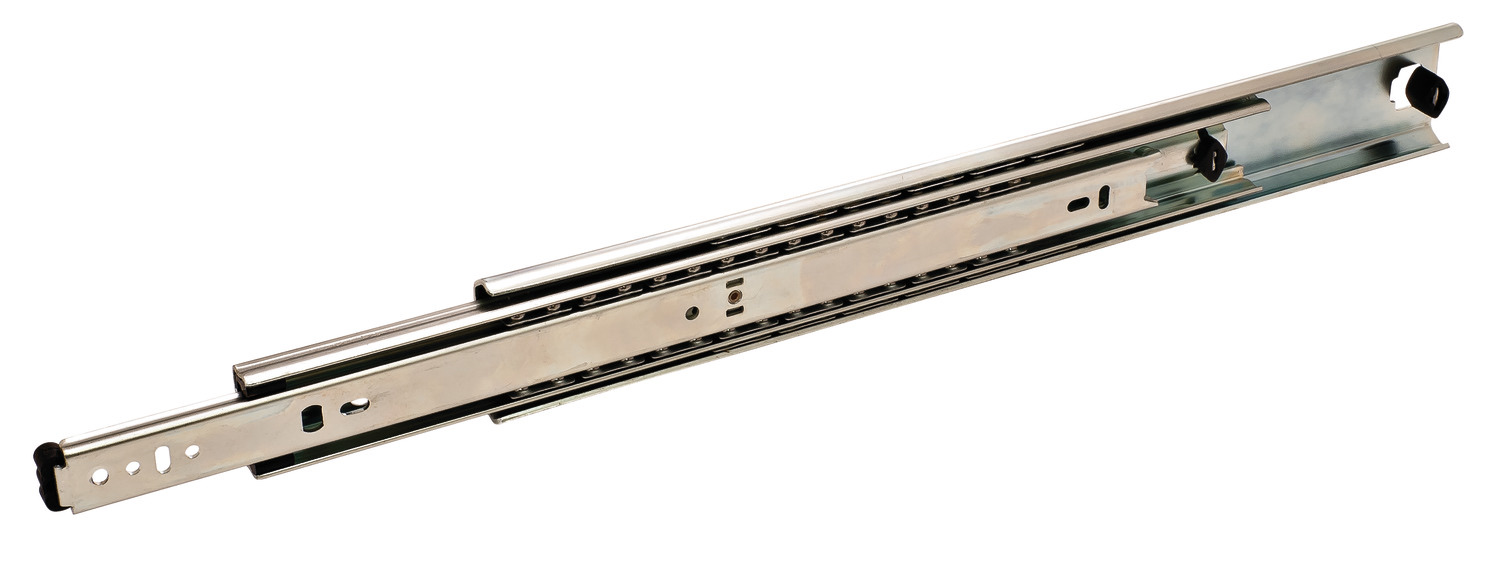

Heavy duty performance: Rated at 200 lb per pair in side-mount installation and 75 lb per pair in flat (bottom) mount, this zinc-plated steel ball bearing slide is built for demanding commercial and industrial drawers up to 42 in wide.
Full drawer access: 1 in of overtravel lets the drawer extend beyond the cabinet opening for complete access to contents, while the hold-in detent keeps it securely closed.
Quiet, low-maintenance operation: Silenced in-and-out stops reduce noise, and the unhanded design with lever disconnect makes installation and drawer removal quick and easy.
Key Features
| No. | Feature | Description |
|---|---|---|
| 1 | Ball bearing construction | Smooth travel with steel ball bearings for heavy duty applications |
| 2 | 200 lb load rating | Per pair when side mounted; 75 lb per pair when flat mounted |
| 3 | 1 in overtravel | Drawer extends fully past the cabinet opening for complete access |
| 4 | Hold-in detent | Holds the drawer in the closed position |
| 5 | Silenced stops | In-and-out stops are silenced for quiet operation |
| 6 | Lever disconnect | Handed lever disconnect for easy drawer removal and reinsertion |
| 7 | Unhanded design | One slide fits both left and right sides, speeding installation |
| 8 | Fits drawers up to 42 in wide | Expands the application range in commercial cabinetry |
| 9 | Zinc-plated steel | Corrosion-resistant finish; RoHS compliant |
Technical Parameters
| Parameter | Value |
|---|---|
| Material | Steel |
| Finish | Zinc-plated |
| Bearing type | Ball bearing |
| Mounting | Side mount or flat (bottom) mount |
| Installation length | 24 in (610 mm) |
| Extension length | 25 in |
| Overtravel | 1 in |
| Load capacity, side mount | 200 lb per pair |
| Load capacity, flat mount | 75 lb per pair |
| Cross-section (W x H) | 19.8 mm x 53.1 mm (0.78 in width) |
| Holding function | Hold-in detent |
| Disconnect | Handed lever disconnect with release lever |
| Recommended drawer size | 1 9/16 in (39.69 mm) less than the cabinet opening |
| Required side space | 0.78 in (19.8 mm, +0/-0.5 mm tolerance) |
| Maximum drawer width | 42 in |
| Compliance | RoHS compliant |
Installation and Mounting
| Item | Requirement |
|---|---|
| Mounting positions | Side mount or flat (bottom) mount |
| Cabinet side space | Installs in a 1/2 in or 3/4 in side space; the same hole configuration and fastener type are used for both |
| Drawer sizing | Make the drawer 1 9/16 in (39.69 mm) smaller than the cabinet opening |
| Clearance | Allow 0.78 in (19.8 mm, +0/-0.5 mm) of side space per slide set |
| Handedness | Unhanded — slides install on either side of the drawer |
| Drawer removal | Press the lever disconnect to release the inner member |
Packaging Options
| Packaging | Contents |
|---|---|
| P Pack (bulk) | 5 pair per box; mounting hardware ordered separately |
| D Pack (polybag) | 1 pair of slides with mounting screws included |
Note: Bulk cartons contain 50 packs (2 slides per pack).
FAQ
1. How much weight can these slides carry?
The load rating is 200 lb per pair when side mounted and 75 lb per pair when flat (bottom) mounted.
2. What drawer size should I use?
Size the drawer 1 9/16 in (39.69 mm) smaller than the cabinet opening. Drawers up to 42 in wide are supported.
3. How do I remove the drawer for service?
Press the handed lever disconnect to release the inner member. The slides are unhanded, so the same procedure applies to both sides.
4. Are mounting screws included?
D Pack (polybag) includes one pair of slides with mounting screws. P Pack (bulk, 5 pair per box) requires mounting hardware to be ordered separately.
