Product Parameters:

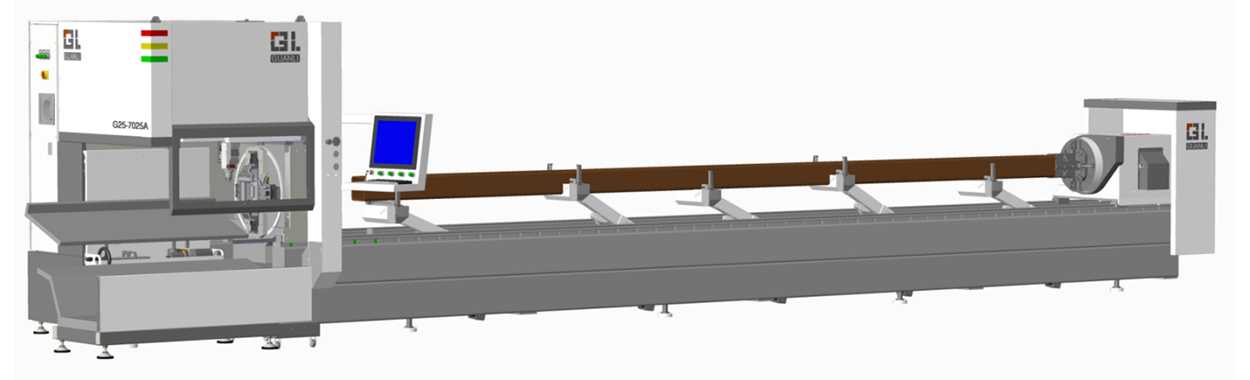

1. Machine Overview
The 6036A packages the G36 family architecture on a compact 6-meter platform for workshops moving into laser tube cutting. It shares the series’ 80 rpm / 0.8 G chuck, cross-mounted high-rigidity dust-proof guide rails, and side-hung cutting structure with integrated automatic loading machine, while keeping the series running cost of RMB 30–40 per hour. The source spec does not publish a separate laser power rating or loading-cycle figure for this entry configuration in the native draft text; the factory parameter-table image (reproduced below) confirms a 3000W source for this unit.
2. Key Advantages
- Full-series architecture at entry cost — welded annealed bed, side-hung structure and automatic loading at RMB 30–40/h.
- 20–360 mm tube range on one machine — from thin structural tube to Φ360 mm sections.
- 20–45 mm tail waste — two-chuck motor avoidance shortens end scrap on every bar.
- 80 rpm / 0.8 G chuck — stable rotation for round-tube work.
- Cross-mounted dust-proof guide rails — high-rigidity guiding for the tube-cutting environment.
3. Welded, Stress-Relieved Machine Bed
The bed is welded from plate and tube stock and stress-relieved in a 600 °C anneal held for 4.5 hours with furnace cooling, then rough-machined and finish-machined in sequence. Machining a stabilized structure — rather than as-welded steel — keeps the rail mounting surfaces accurate over years of loading cycles.
4. Automatic Loading on the Side-Hung Structure
The cutting unit rides on a side-hung (cantilever) structure integrated with the automatic loading machine. Across the G36 series the loader runs semi-automatically, loading five tubes continuously on a 35–45 s cycle; the 6036A spec does not list a separate cycle time, so the series figure is the reference value.
5. Cutting Performance
Published process parameters for this configuration class (speeds in m/min; for 1–3 mm carbon steel the first figure is oxygen and the second air; piercing 0.1–0.8 s):
| Material | Thickness (mm) | Cutting Speed (m/min) | Assist Gas |
|---|---|---|---|
| Carbon steel | 1 | 7–10 / 20–25 | Oxygen / air |
| Carbon steel | 2 | 5–7.5 / 13–17 | Oxygen / air |
| Carbon steel | 4 | 3.5–4.5 | Oxygen / air |
| Carbon steel | 8 | 1.6–2.3 | Oxygen / air |
| Carbon steel | 12 | 0.9–1.2 | Oxygen / air |
| Stainless steel | 1 | 20–25 | Nitrogen |
| Stainless steel | 2 | 12–15 | Nitrogen |
| Stainless steel | 4 | 3.5–4.5 | Nitrogen |
| Stainless steel | 6 | 1.3–1.8 | Nitrogen |
| Stainless steel | 8 | 0.8–1 | Nitrogen |
| Aluminum alloy | 1 | 20–25 | Nitrogen |
| Aluminum alloy | 2 | 13–17 | Nitrogen |
| Aluminum alloy | 4 | 3.5–4.5 | Nitrogen |
| Aluminum alloy | 6 | 1.3–1.8 | Nitrogen |
| Brass | 1 | 22–26 | Nitrogen |
| Brass | 2 | 10–15 | Nitrogen |
| Brass | 4 | 2.5–3.5 | Nitrogen |
| Brass | 6 | 1–1.5 | Nitrogen |
| Copper | 1 | 20–25 | Oxygen |
| Copper | 2 | 9–12 | Oxygen |
| Copper | 3 | 3.5–5.5 | Oxygen |
| Copper | 4 | 2.2–2.5 | Oxygen |
6. Power, Cooling and Gas Supply
| Item | Requirement |
|---|---|
| Power supply | Three-phase five-wire 380–400 VAC, 50 Hz; recommended capacity ≥ 60 kVA, voltage stability ± 2%, grounding resistance ≤ 3 Ω |
| Cooling water | 40 L distilled / deionized water, conductivity < 10 µS/cm |
| Assist gas | Oxygen purity ≥ 99.6%; nitrogen purity ≥ 99.99% |
7. Key component configuration
| No. | Component | Brand | Model / Specification |
|---|---|---|---|
| Key Components | |||
| 1 | Fiber Laser Source | Kaipulin | 3000W / Domestic first-tier brand |
| 2 | Cutting Head | Guanli | 3000W / Domestic first-tier brand |
| 3 | Rack and Pinion | Jingte | M2-6 grade / Taiwan, China |
| 4 | Reducer | MOTOREDUCER | 110-090 / China |
| 5 | Linear Guide Rail | AIRTAC, Taiwan | CGH35 / China |
| 6 | Motor | Inovance | High-performance motor, max 4000 rpm, bus-type |
| 7 | Dust Collection Device (optional) | N/A | Dust collection fan / Domestic first-tier brand |
| 8 | Water Chiller | Hanli | 3000W / Domestic first-tier brand |
| 9 | Electrical Control Components | Schneider, France | China |
| 10 | Pneumatic Components | AIRTAC, Taiwan | China |
| Machining Components | |||
| 11 | Main Machine Bed | Independently developed, Suzhou | 7.5 m / high-temperature annealing |
| 12 | Chuck | Independently developed, Suzhou | GL-360 dual-chuck |
| 13 | Auxiliary Loading | Independently developed, Suzhou | 3 supports / load capacity 500 kg |
| 15 | Unloading Device, Unloading Frame | Independently developed, Suzhou | Pneumatic unloading flap, 40 kg per meter |
| Software System | |||
| 16 | Operating System | Shanghai Bochu | Bus-type system / Shanghai |
| 17 | Nesting Software | Shanghai Bochu | Dedicated 3D tube-cutting software / Shanghai |
| Others | |||
| 18 | Operation Direction | Right-hand machine | Standard |
| 19 | Packaging and Transportation | Standard packaging | Standard |
Note: Industrial power supply: 380V ±5V. Customers should add a voltage stabilizer according to actual site conditions.
